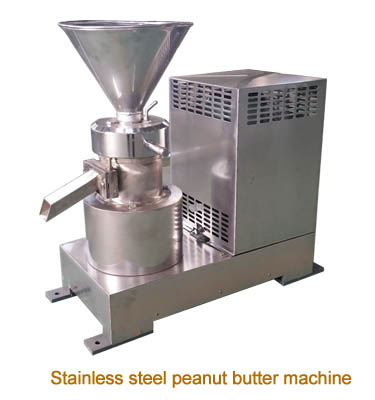

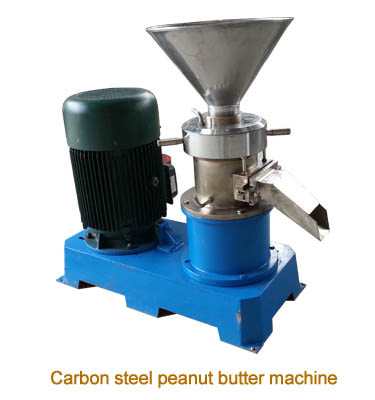

Carbon & Stainless Steel Peanut Butter Grinder Machine
Introduction to Peanut Butter Grinder Machine
The peanut butter grinder machine is a specialized machine that is designed to make peanut butter. It is made of food-grade materials that have the characteristics of corrosion resistance and long service life. The machine is available in different materials, including carbon steel and 304 stainless steel, and can be customized according to the needs of the customer. Apart from peanuts, the machine can also process other nuts like sesame, almonds, cashews, and cocoa beans. To meet higher fineness and outputs, combined peanut butter machines are also available.
Technical specification of peanut butter machine:
| Model | Power(kw) | Capacity(kg/h) | Dimension(mm) |
| KMGR-70 | 2.2 | 60-80 | 600*300*600 |
| KMGR-85 | 5.5 | 100-150 | 800*350*850 |
| KMGR-130 | 11 | 200-300 | 1000*350*1000 |
| KMGR-180 | 22 | 400-500 | 1200*450*1200 |
Application of peanut grinder:
Peanut butter grinder machine is the substitute product of our company produced on the basis of years of research and development of superfine grinding with good grinding and crushing performance. It is widely used in the food industry, including peanut butter processing factories, restaurants, and home kitchens. In the peanut butter production line, the machine plays a vital role in the process of making peanut butter. It grinds the peanuts into a smooth and creamy paste, which is then mixed with other ingredients such as sugar, salt, and vegetable oil. The resulting product is a delicious and nutritious spread that can be enjoyed by people of all ages.
The working principle of peanut butter ginder machine
The peanut butter grinder machine uses a rotor and a stator to grind the peanuts into a smooth paste. The rotor is a rotating disc that has several teeth or blades, and the stator is a stationary disc that has a corresponding number of teeth or blades. The clearance between the rotating disc and stationary disc can be adjusted through fine adjusting system according to the required fineness index. The processed material is fed from the hopper into the working clearance of the space between the rotating disc and stationary disc under the centrifugal force through the variable grinding clearance, strong centrifugal force produced by the high speed rotating, cutting and grinding of the disc to achieve the refinement of materials.
Structural characteristics of peanut butter grinder machine
The peanut butter machine has compact structure, convenient operation, maintenance, cleaning, etc. The parts contacting with materials adopt high quality special materials. The rotating and stationary disc are manufactured in a special way. The peanut butter machine is equipped with the grinding head clearance fine adjusting system with flexible operation, accurate, convenient and reliable. It uses less power than superfine grinding with high yield, low temperature rise, low price, etc.

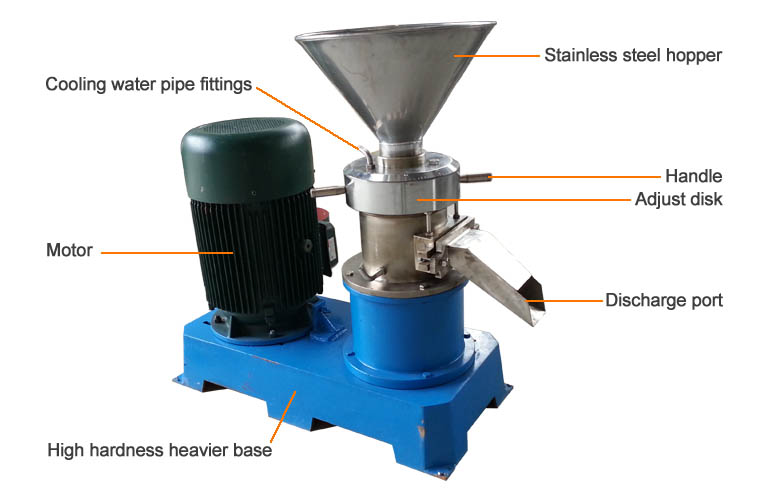

The structure of peanut grinder machine
The machine is made up of several components, including the hopper, the grinding chamber, the rotor, the stator, the discharge port, and the motor. The hopper is where the peanuts are loaded into the machine, and the grinding chamber is where the grinding takes place. The rotor and stator are the components responsible for grinding the peanuts, and the motor provides the power needed to drive the rotor. The discharge port is where the peanut butter is expelled from the machine.
To ensure the optimal performance of the peanut grinder machine, there are several factors to consider. Firstly, the machine needs to be cleaned regularly to prevent contamination and to ensure the longevity of the machine. Secondly, the quality of the peanuts used in the machine can affect the quality of the peanut butter produced. It is essential to use high-quality, fresh peanuts to ensure the best results.

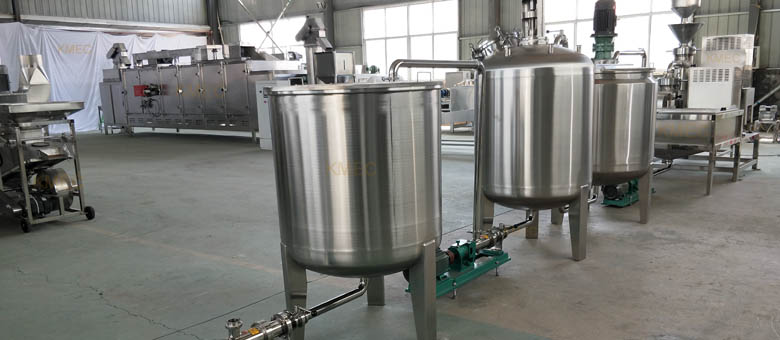

Automatic peanut butter grinding machine production line
The peanut butter grinder machine has various applications and can be used in the food industry, including peanut butter processing factories, restaurants, and home kitchens. It is an essential part of the peanut butter production line and is used to make a smooth and creamy paste that is mixed with other ingredients to make delicious and nutritious spreads. The machine is also used to make other nut butters, such as almond butter and cashew butter.
KMEC is the professional peanut butter production line manufacturer with complete machine model of peanut butter grinding machine, strong processing equipment technology, perfect sales network and after-sales service system. Currently, our products are mainly exported to the areas across the country and southeast Asia, India, Russia, Europe, America and other overseas countries and regions.
